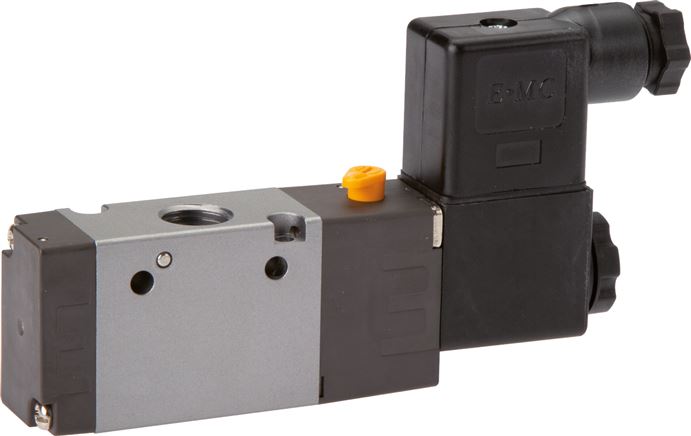

RV 3221-08-24V=

Properties

Control voltage 24 V DC

function closed (NC)*

Thread G1 (2x) G 1/4"

Thread exhaust air G1 (1x) G 1/4"

Nominal width [mm] 4,5

flow [l/min] 800

Power consumption (DC) [W] 3

Spare solenoid coil MAG T1 24V=

A [mm] 112,7

B [mm] 35

C [mm] 22

D [mm] 8,2

E [mm] 18,5

F [mm] 25

H1 [mm] 4,2

H2 [mm] 3,3

J [mm] 17

K [mm] 16,0

L [mm] 30

M [mm] 19,8

N [mm] 22,5

O [mm] 32,0

P [mm] 1,5

U [mm] 67,5

V [mm] 40,5

W [mm] 0
